Setup CloudWatch Alarm

In this section of the lab, we are going to setup a CloudWatch Alarm to monitor our API for 5XX errors and demonstrate that AppConfig will rollback deployment when an alarm associated with our AppConfig Environment triggers.

Deploy API Gateway

Before we begin we will need to create a development stage and deploy our API Gateway so that we can monitor it for 5XX Errors in CloudWatch.

Use the following procedures to create a deployment and stage for API Gateway.

  1. Visit the API Gateway Console and locate the AppConfigLabAPI row in the list.

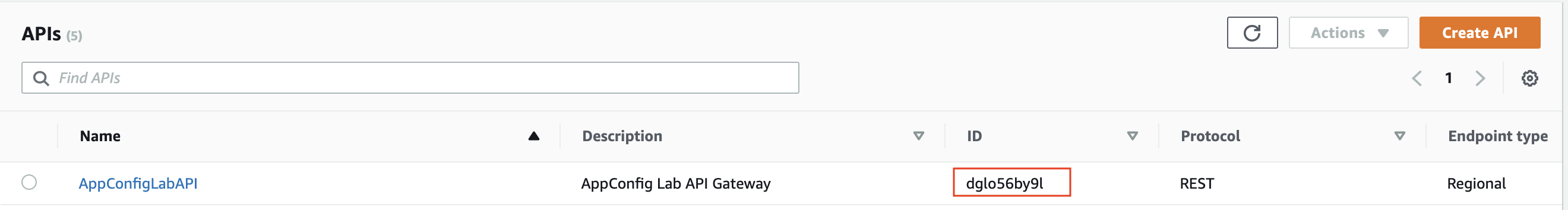

  2. Make note of the value for the ID column for the AppConfigLabAPI row. AppConfig API List
  3. Using the ID obtained in the previous step, execute the following AWS CLI command to create a deployment and stage.
    aws apigateway create-deployment --rest-api-id YOUR_API_ID --region us-east-1 --stage-name development
  4. Visit the Lambda Console and select AppConfigLabAPIGatewayLambda from the list of functions.
  5. Select the Configuration tab.
  6. In the Designer section, locate the API Gateway block and select it in order to display the API Gateway section.
  7. Locate the API endpoint URL in the API Gateway section.
  8. Click the API endpoint URL. This will execute the API in the stage we configured - development - and is necessary to register our API in CloudWatch so that we can next setup a CloudWatch Alarm.

Configure CloudWatch Alarm Permission Policy for Rollback

You can configure AWS AppConfig to roll back to a previous version of a configuration in response to one or more Amazon CloudWatch alarms. When you configure a deployment to respond to CloudWatch alarms, you specify an AWS Identity and Access Management (IAM) role. AppConfig requires this role so that it can monitor CloudWatch alarms even if those alarms weren’t created in the current AWS account.

Use the following procedure to create an IAM policy that gives AppConfig permission to call the DescribeAlarms API action.

  1. Visit the IAM Console and select Policies.
  2. Select Create Policy.
  3. On the Create Policy page, select the JSON tab.
  4. Replace the default content on the JSON tab with the following permission policy, and then choose Review policy.
        "Version": "2012-10-17",
        "Statement": [{
            "Effect": "Allow",
            "Action": [
            "Resource": "*"
  5. On the Review page, enter AppConfigLabCloudWatchPolicy in the Name field.
  6. Select Create policy to complete the process and return to the Policies page.

Create IAM role for the rollback based on CloudWatch alarms

Use the following procedure to create an IAM role and assign the policy you created in the previous procedure to it.

  1. Visit the IAM Console and select Roles and then choose Create role.
  2. Under Select type of trusted entity, choose AWS Service.
  3. Immediately under Choose a use case, choose EC2, and then choose Next: Permissions.
  4. On the Attached permissions policy page, search for AppConfigLabCloudWatchPolicy.
  5. Choose this policy and then choose Next: Tags.
  6. Enter tags for this role (optional), and then choose Next: Review.
  7. On the Create role page, enter the name AppConfigLabCloudWatchRole in the Role name field, and then update the Role description to Allows role to call CloudWatch DescribeAlarms.
  8. Then, choose Create Role.

Add Trust Relationship for AppConfig to Assume Role

Use the following procedure to assign a trust relationship which allows AppConfig to assume the role that you just created and call CloudWatch DescribeAlarms API action.

  1. In the Summary page for the role you just created, choose the Trust Relationships tab, and then choose Edit Trust Relationship.
  2. Edit the policy to include only “”, as shown in the following example:
      "Version": "2012-10-17",
      "Statement": [
          "Effect": "Allow",
          "Principal": {
            "Service": ""
          "Action": "sts:AssumeRole"
  3. Choose Update Trust Policy.

Create a CloudWatch Alarm to Monitor API Gateway 5XX Errors

Use the following procedure to create a CloudWatch alarm that will enable AppConfig to roll back a configuration when the alarm is triggered.

  1. Visit the CloudWatch console and choose ALARM under Alarms.
  2. Choose Create alarm.
  3. Choose Select metric and then ApiGateway from the AWS Namespaces section.
  4. Selec
  5. Select Select metric to continue.
  6. Change Statistic to Sum and enter 5 as the threshhold value. AppConfig CloudWatch Alarm
  7. Select Next.
  8. On the next page, Configure actions, select Remove from the Notification section and then select Next. We will not create a notification action for this example during the lab.
  9. Enter AppConfig-API-5XX-Alarm in the Name field and enter an optional Alarm description.
  10. Select Next and then select Create alarm.

Update Lambda Configuration to Return 5XX Error to API Gateway

One quick way to force API Gateway to return a 500 Internal Server Error and trigger the AppConfig-API-5XX-Alarm CloudWatch Alarm, is to simply remove the API Gateway trigger directly from the AppConfigLabAPIGatewayLambda Lambda.

Use the following procedure to remove API Gateway trigger from Lambda.

  1. Visit the Lambda Console and select AppConfigLabAPIGatewayLambda from the functions list.
  2. Select the Configuration tab and Select API Gateway in the Designer section.
  3. Select Delete from the API Gateway section. AppConfig Lambda Remove Trigger
  4. Select Save.

Now that we have deleted the association between API Gateway and Lambda, any call to our API Gateway will throw a 500 Internal Server Error and trigger our CloudWatch Alarm provided the thresshold that we configured (i.e., >= 5 errors within a 5 minute period).

Update AppConfig Environment to Include CloudWatch Alarm

Next, we need to add the CloudWatch Alarm to our AppConfig Environment configuration so that AppConfig can monitor the alarm during deployment.

Use the following procedure to attach a CloudWatch Alarm to the AppConfig Environment.

  1. Visit the AppConfig console and select AppConfigLab from the Applications list.
  2. Select AppConfigLabAPIGatewayDevelopment from the Environments list and then select Update environment.
  3. Expand the Monitors section and enter AppConfigLabCloudWatchRole in the IAM role field.
  4. Select AppConfig-API-5XX-Alarm from the Cloudwatch alarms dropdown list.
  5. Select Add then select Update environment.

Redeploy AppConfig Environment

  1. Select Start deployment.
  2. Choose AppConfigLabAPIGatewayDevelopment from the Environment dropdown list.
  3. Select the Latest version from the Hosted configuration version dropdown list.
  4. Select AppConfig.AllAtOnce (Quick) from the Deployment strategy dropdown list.
  5. Enter Redeploy after adding CloudWatch alarm in the Deployment description field.
  6. Select Start deployment

Generate API Gateway 5XX Errors and Trigger Deployment Rollback

  1. Visit the API Gateway Console and select AppConfigLabAPI from the APIs list.
  2. Select Stages from the left navigation and then select development to reveal the invocation URL for this stage of the AppConfigLabAPI.
  3. Click on the Invoke URL. A new browser window will open and it should display {"message": "Internal server error"}. Refresh this page several times to generate enough errors to trigger the CloudWatch Alarm.
  4. In a new browser window, visit the AppConfig console and select AppConfigLab from the Applications list.
  5. Select AppConfigLabAPIGatewayDevelopment from the Environments list and then select the latest Deployment number from the Deployments list.
  6. Observe that the deployment was rolled back due to the CloudWatch Alarm being triggered. AppConfig Deployment Rollback@
