Distributor

AWS Systems Manager Distributor lets you package your own software—and find AWS-provided agent software packages, such as AmazonCloudWatchAgent, or third-party packages such as Trend Micro—to install on AWS Systems Manager managed instances. Distributor publishes resources, such as software packages, to AWS Systems Manager managed instances. Publishing a package advertises specific versions of the package’s document—a Systems Manager document that you create when you add the package in Distributor—to managed instances that you identify by managed instance IDs, AWS account IDs, tags, or an AWS Region.

After you create a package in Distributor, which creates an AWS Systems Manager document, you can install the package in one of the following ways:

  • One time by using AWS Systems Manager Run Command

  • On a schedule by using AWS Systems Manager State Manager

Reference Video

In this lab we will create a custom package that deploys the AWS Kinesis Agent. Additional configuration is required to utilize the agent which can be found here but is out of scope for this lab.

  1. You will need to make an S3 bucket to store the package in:

    • Navigate to S3

    • Select Create Bucket

    • For Bucket Name Enter: YOURFIRSTNAME10-sm-distributor

    • For Region ensure us-east-1 is selected

    • For Bucket settings for Block Public Access ensure the check box is selected

    • Keep all defaults for the remaining items

    • Select Create Bucket

  2. Download the following package locally:

    AWS Kinesis Agent

  3. Navigate to Systems Manager > Instances & Nodes > Distributor

  4. Select Create Package

  5. Select Simple Package (Advanced allows you to specify your own install/uninstall scripts)

  6. Enter: Kinesis-Agent for the name

  7. Select the bucket you made in the previous step

  8. Enter a prefix of Kinesis-Agent

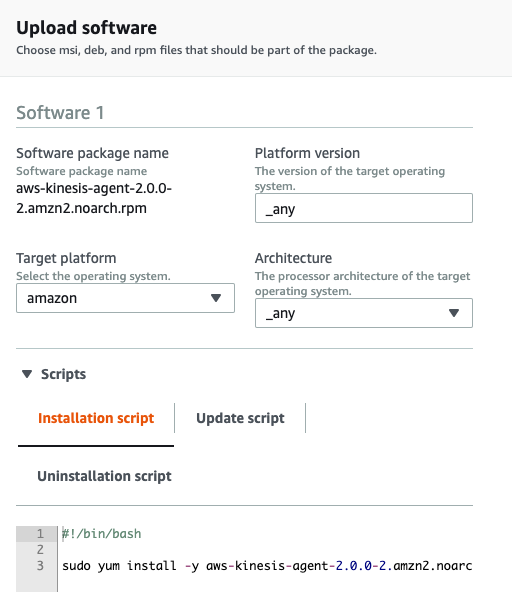

  9. Select Add Software under Upload

    • Select the Kinesis rpm you downloaded in step 2

    • Set the Target Platform as amazon

    • Set Platform Version as _any

    • Set Architecture as _any

  10. If you expand Scripts you can see that distributor has already provided the appropriate installation / uninstallation scripts

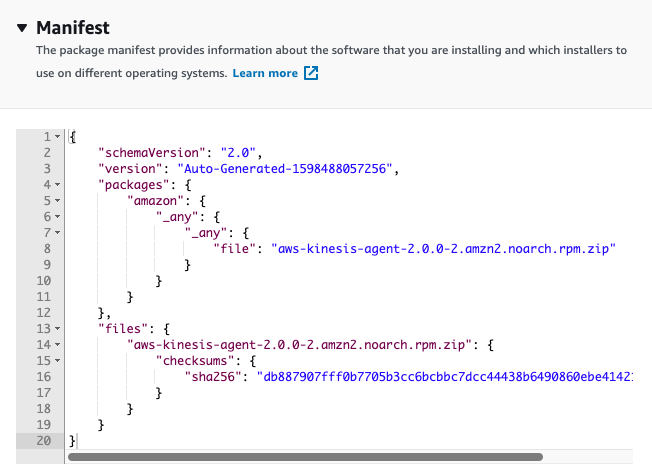

  11. If you expand Manifest you will see the package you are installing and the which package manager to use depending on the selected Operating Systems

  12. Select Create Package

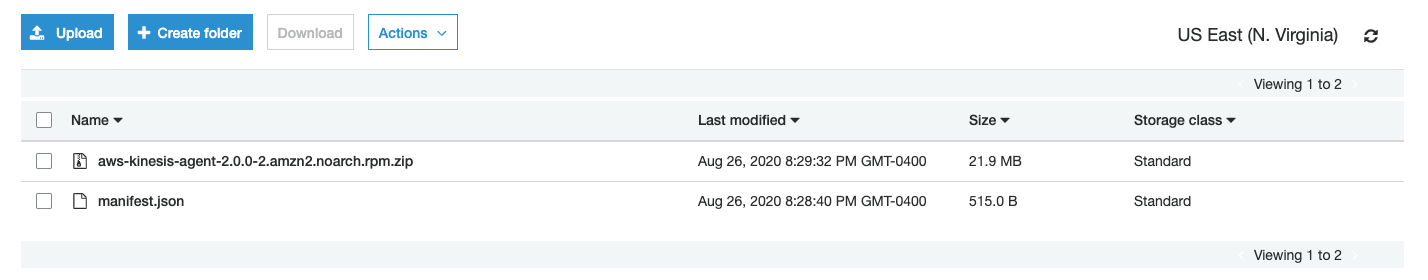

  13. Your manifest file and package data will be uploaded to the specified S3 bucket

Install Custom Package

Now that you have your custom package uploaded to your S3 bucket along with the manifest. Distributor gives you 2 quick options to deploy your package. You can either install on a schedule or install one time. Installing on a schedule automatically prepares a State Manager Association with the pre-defined Document of AWS-ConfigureAWSPackage and the name of your custom package as a parameter. Install one time does the same preparation but uses Run Command.

  1. Navigate to Systems Manager > Instances & Nodes > Distributor

  2. Choose the Owned by me tab

  3. Select the Radio button next to Kinesis Agent

  4. Choose Install one time

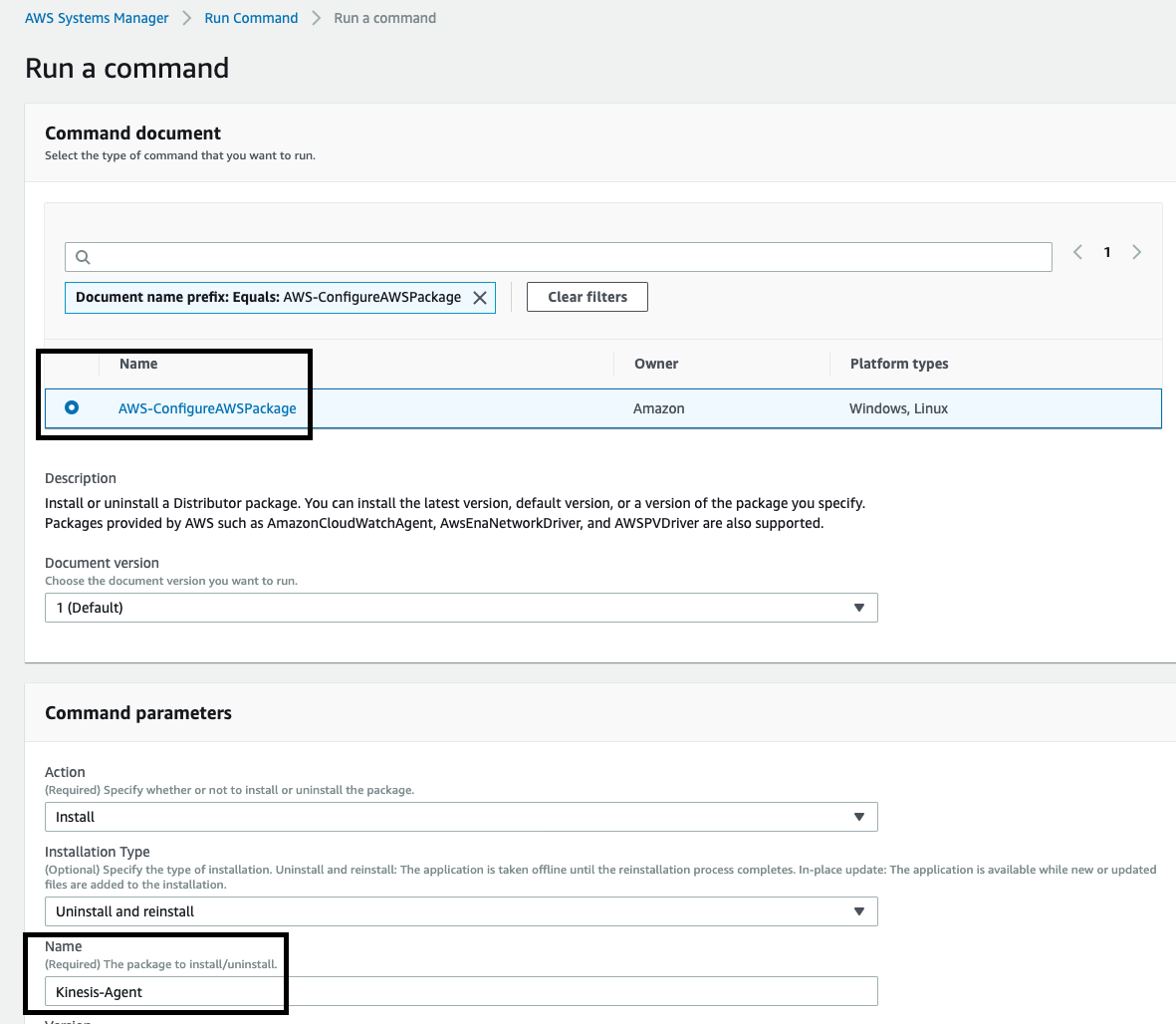

  5. This will pre-populate the Run Command with all of the necessary configuration items to execute against the instances you choose

    • NOTE: Run Command uses the Amazon Managed command document - AWS-ConfigureAWSPackage to execute the package you created

  6. For Targets select Choose instances manually

  7. Select App1 and App2 as the instances that will get the new Distributor package applied

  8. Leave the remaining configuration details as default

  9. EXCEPT: Under Output Options leave the check for Enable writing to an S3 bucket

    • Chose the bucket you created earlier from the drop down and enter Kinesis-Agent-logs as the prefix

  10. Choose Run

  11. You are now redirected to the to the Run Command progress for the distributor package deployment

  12. Hit the refresh button:

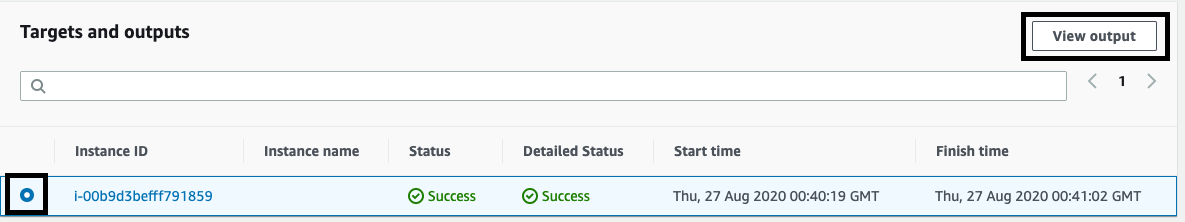

  13. The command should have completed successfully. Under Targets and Outputs Highlight the radio button next to instance ID and select View Output

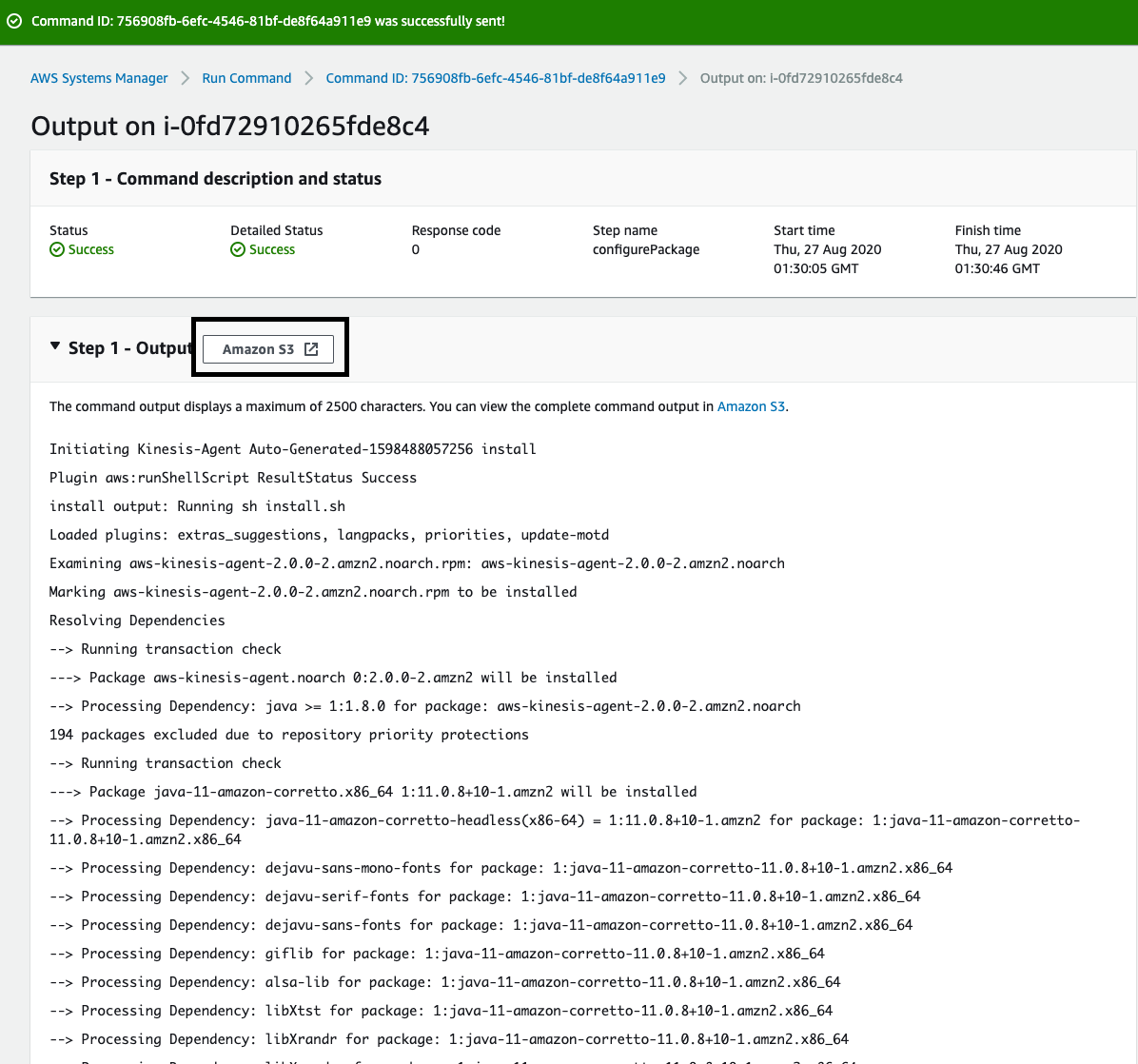

  14. Click on the Amazon S3 link to bring you over to the full log output. The Run Command console will only show 2500 characters of the log output.

  15. Once in the S3 bucket choose the folder configurePackage

  16. Select the file stdout

  17. Choose the Select from tab

  18. Select Show file preview select Next

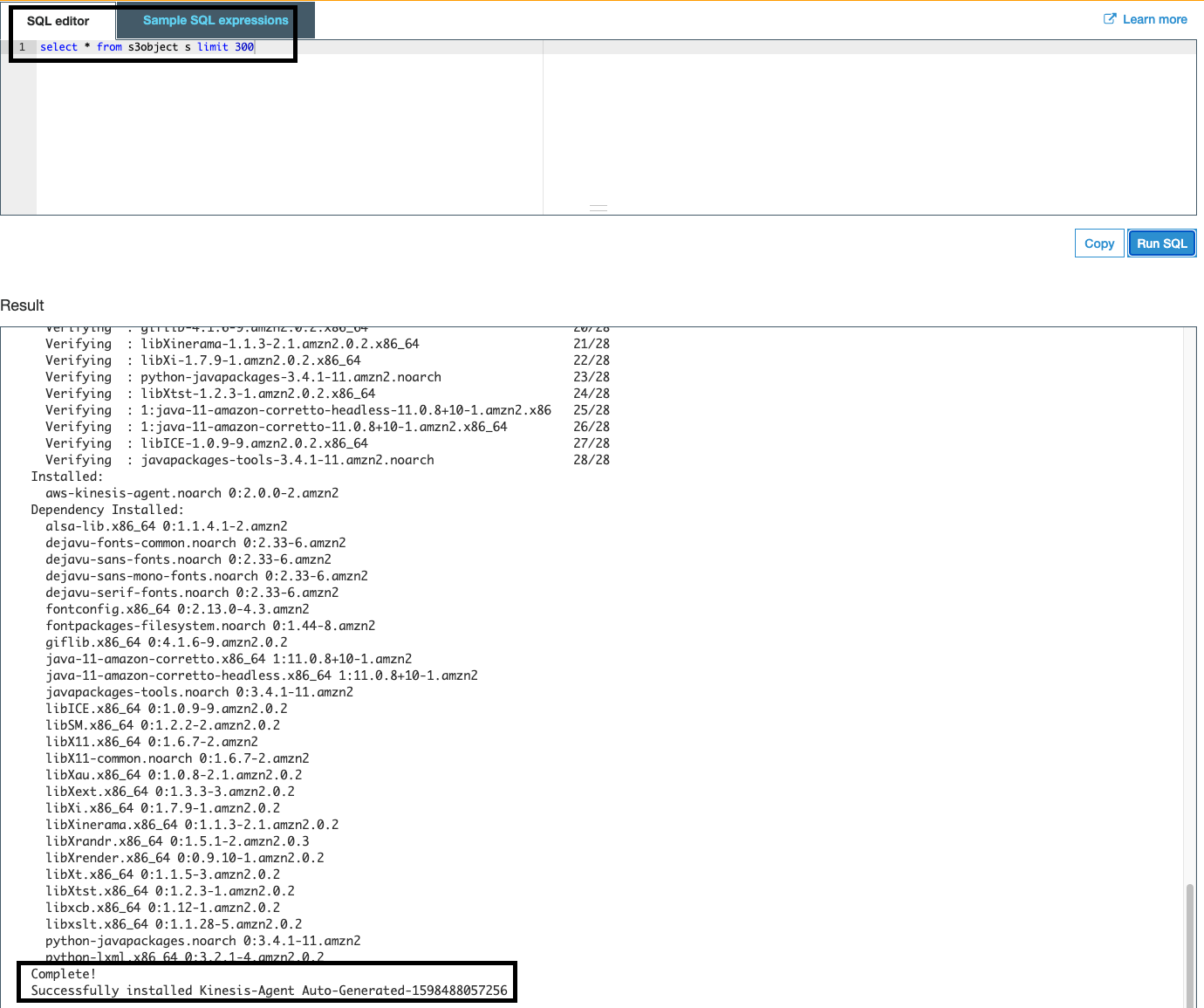

  19. Under SQL Expression in SQL Editor change the limit from 5 to 300

  20. Choose Run SQL

  21. Scroll to the bottom of the log and you will see the successfully installed message!

  22. You have now configured a Distributor package with custom software, used Run Command to deploy the package to a Managed Instance, and reviewed the Log output in S3. The logs can also be sent to CloudWatch Logs.
