OpsCenter

OpsCenter provides a central location where operations engineers and IT professionals can view, investigate, and resolve operational work items (OpsItems) related to AWS resources. OpsCenter is designed to reduce mean time to resolution for issues impacting AWS resources. This Systems Manager capability aggregates and standardizes OpsItems across services while providing contextual investigation data about each OpsItem, related OpsItems, and related resources. OpsCenter also provides Systems Manager Automation documents (runbooks) that you can use to quickly resolve issues. You can specify searchable, custom data for each OpsItem. You can also view automatically-generated summary reports about OpsItems by status and source.

OpsCenter is integrated with Amazon CloudWatch Events. This means you can create CloudWatch Events rules that automatically create OpsItems for any AWS service that publishes events to CloudWatch Events. For example, you can configure SSM OpsItems as the target for the following types of events, and hundreds more:

  • Security issues, such as alerts from AWS Security Hub

  • Performance issues, such as a throttling event for Amazon DynamoDB or degraded Amazon Elastic Block Store (EBS) volume performance

  • Failures, such as an Amazon EC2 Auto Scaling group failure to launch an instance or a Systems Manager Automation execution failure

  • Health alerts, such as an AWS Health alert for scheduled maintenance

  • State changes, such as an EC2 instance state change from Running to Stopped

In this lab we will enable OpsCenter, create a new OpsItem, trigger the OpsItem, and review the output within OpsCenter.

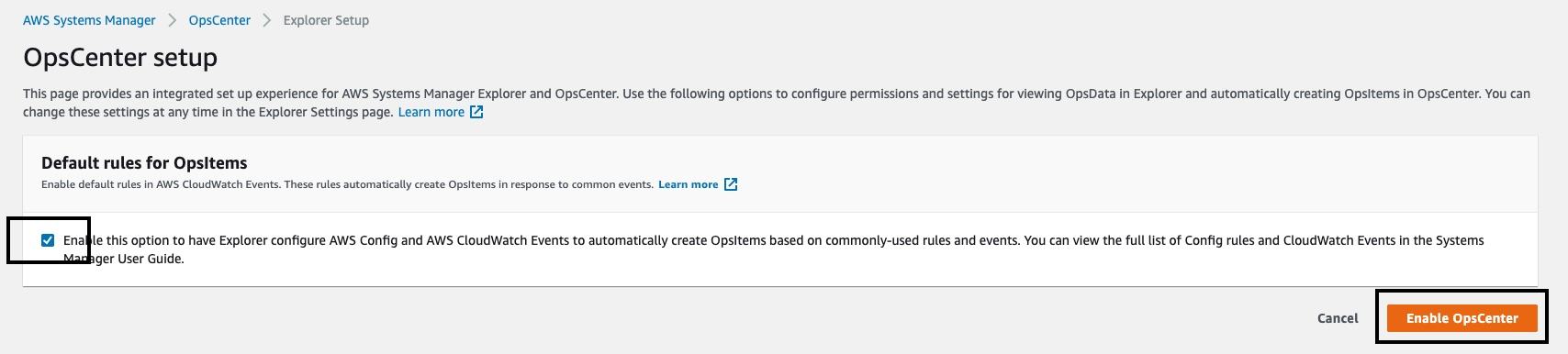

  1. Navigate to Systems Manager > Operations Management > OpsCenter

  2. Select Get started

  3. Leave the Default Rules item checked

  4. Select Enable OpsCenter

  5. Let’s create an OpsItem / Rule so you can see the power of OpsCenter and its ability to aggregate data across AWS services

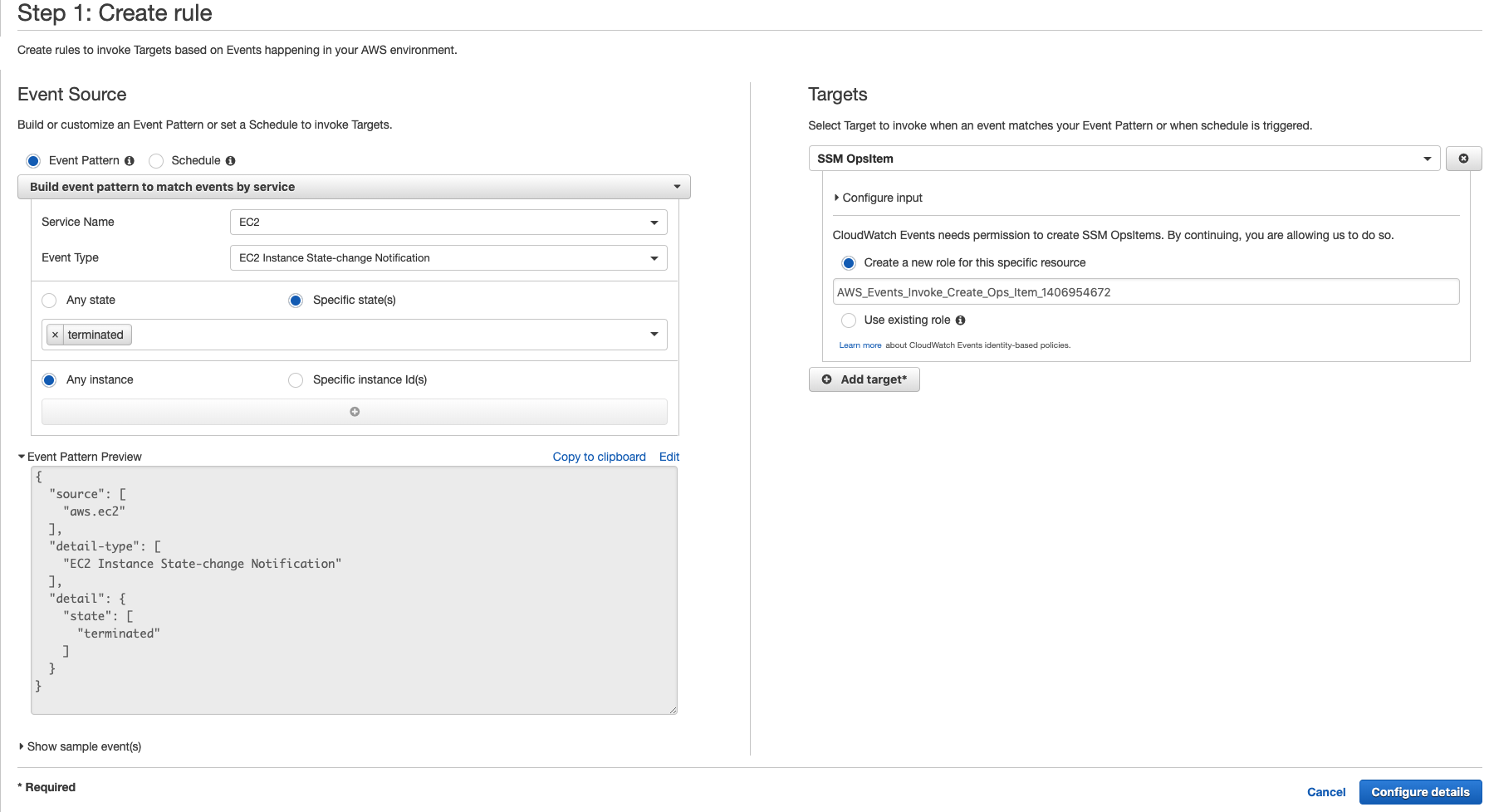

    • Navigate to CloudWatch > Events > Rules

    • Choose Create Rule

    • For Event Source select Event Pattern

    • For Service Name select EC2

    • For Event Type select EC2 Instance State-change Notification

    • For Specific States select Terminated

    • Choose Any instance

    • For Target select SSM OpsItem

    • For Role Allow create new role

      • Alternatively, you could create an IAM Role with the following permissions / policy
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "ssm:CreateOpsItem"
            ],
            "Resource": [
                "*"
            ]
        }
    ]
}

- Select **Configure Details**

- For **Name** enter YOURNAME-test-ec2-terminated

- For **State** select **Enabled**

- Choose **Create Rule**

![](./media/image29.en.png)

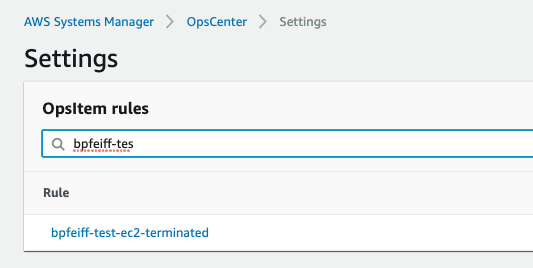

  1. Navigate Back to Systems Manager > Operations Management > OpsCenter > OpsItems > Configure Sources

    • You will now see the new CW rule we created

    • Navigate to EC2

    • Select Web2 and terminate it

      • Highlight instance > Actions > Instance State > Terminate

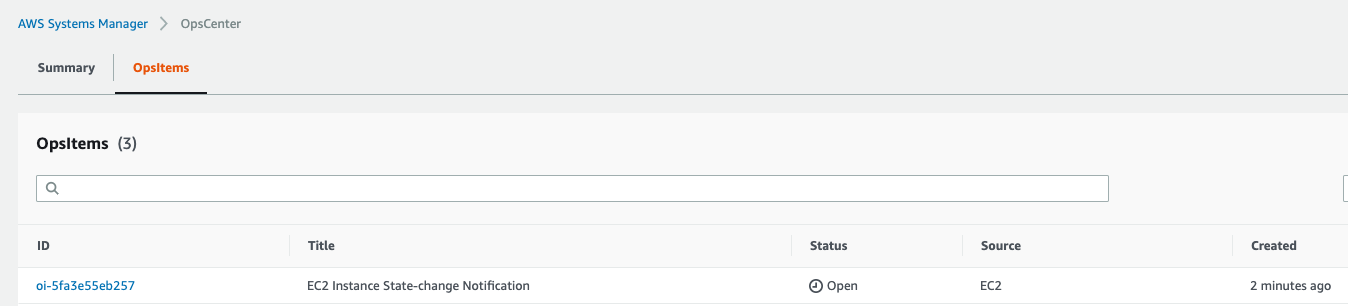

  2. Navigate to OpsCenter

  3. You will now see OpsItems by Source and age – Grouped by source: EC2

    • Under count select the number or go to OpsItem status summary and select one of the open items

    • You will now see our event – Select the ID (e.g. oi-############)

    • You will see data regarding the event (aggregated sources)

      • Related resources shows the ARN of the instance your terminated

      • Runbooks is powerful as it allows you to take action on the event to aid in remediation

      • Operational Data will show you the instance ID, the state, and the CloudWatch Event that generated it

    • Go back to Related resource details (top left)

      • Resource description shows you an output of the meta data that is displayed in the EC2 console when the instance is running

      • Tags for the instance are shown

      • Details from Config (might take some time to show up in Opsitems)

      • CloudTrail is powerful as it shows you relevant events about what happened (who stopped the instance and when) - NOTE: This may take some time to populate in the console after the event occurs

      • CloudFormation stack resources shows the relevant stack data

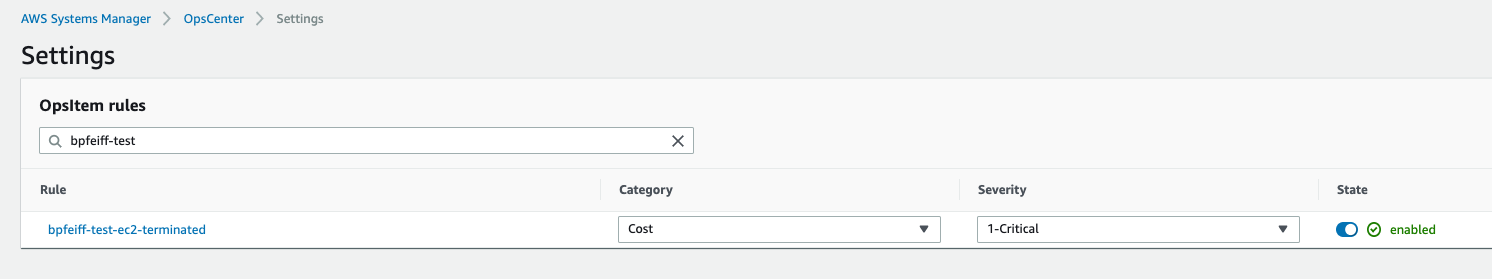

  4. The last item to cover is under OpsItems > Configure Sources is change the Severity it is alerted as (think of the compliance dashboard we did before), Category of the event, and the state

  5. OpsCenter is complimentary to other tools like CWE, Config, and SNS notifications as it allows you to easily respond to events with SSM automation runbooks (think create a ServiceNow Incident after am event)
